Description

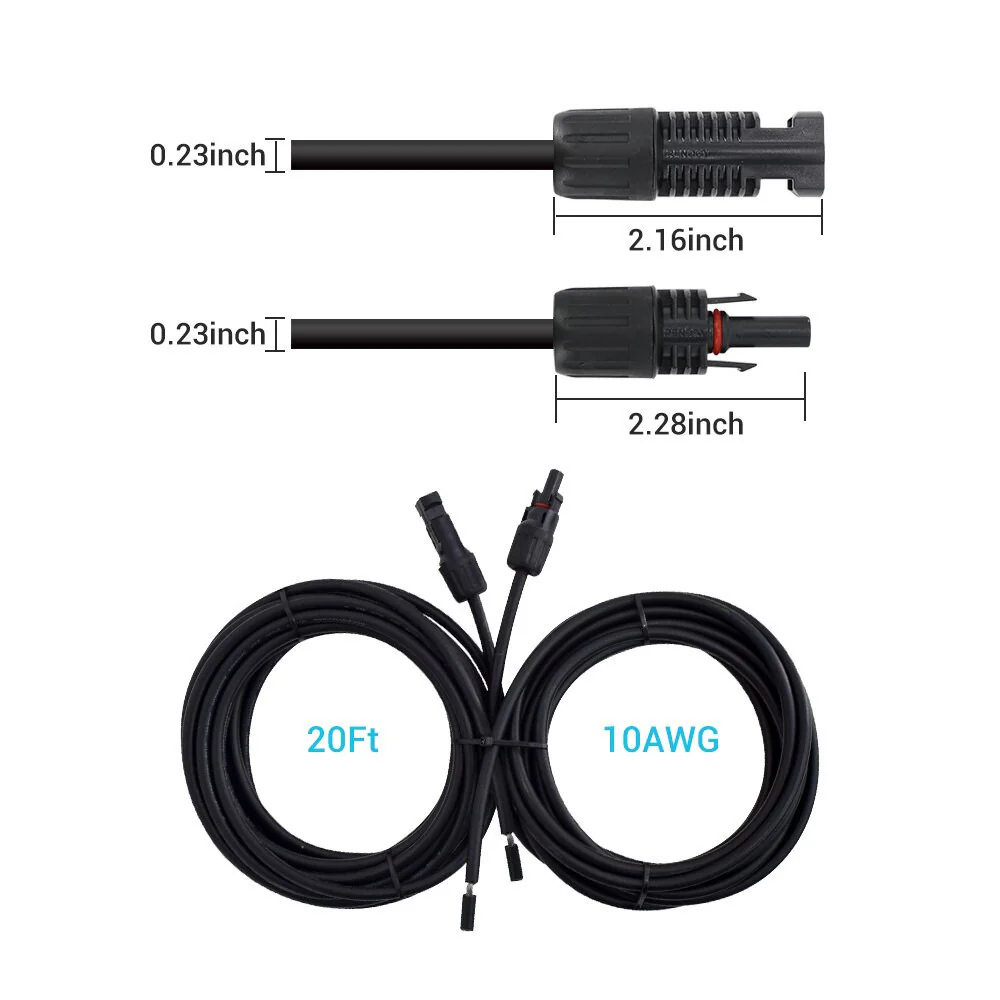

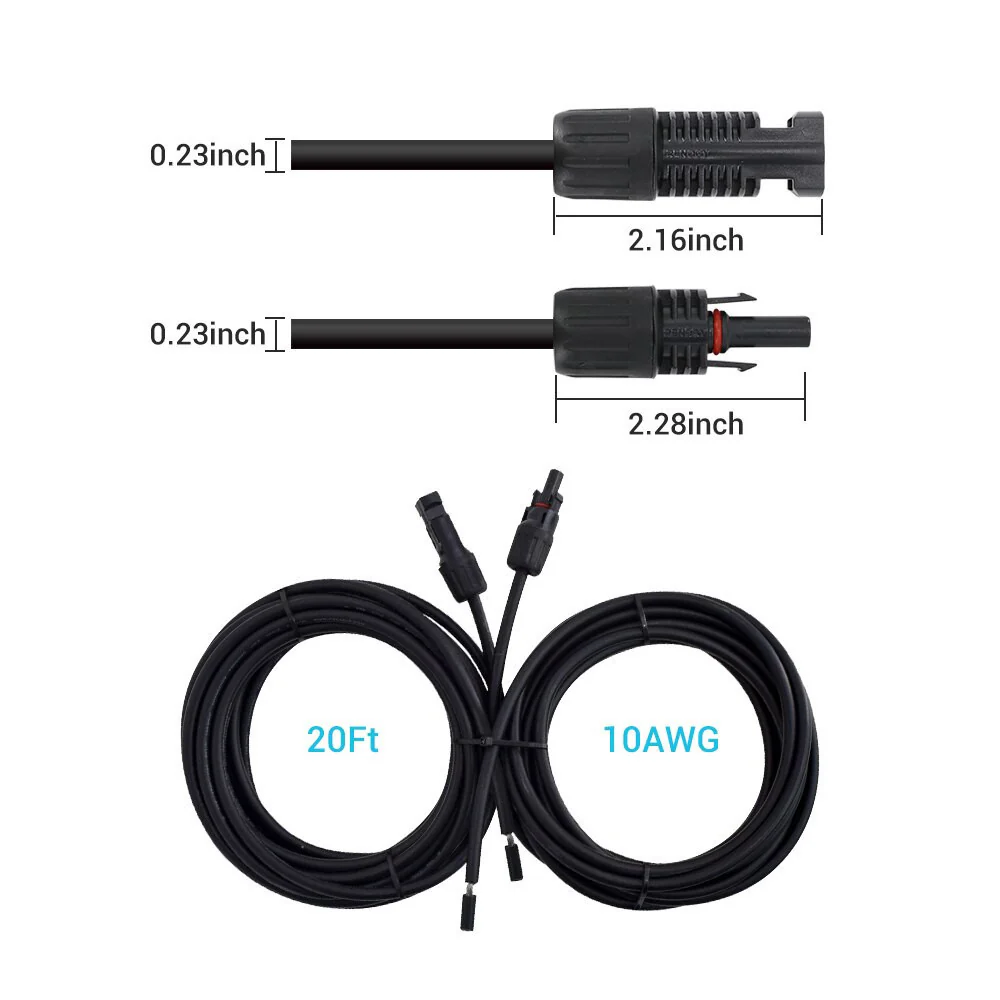

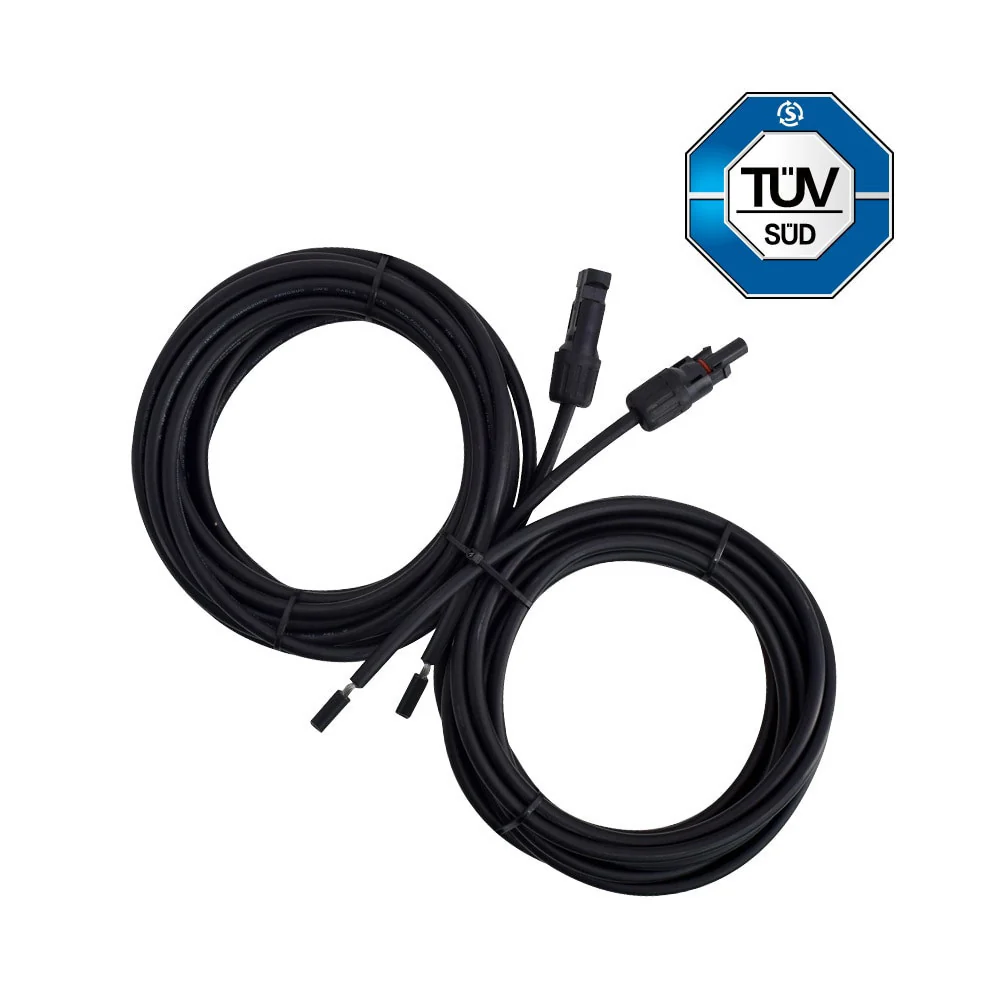

The Renogy Adaptor Kit is a set of two wires designed specifically for connecting a Renogy solar panel to a charge controller. The Adaptor Kit includes MC4 connectors on one end for effortless connection to the solar panel, and exposed wire on the other end to lead directly into the charge controller. This wiring kit is essential for off-grid solar installations, roof or ground level, and is offered in a wide range of sizes. The wiring is weatherproof and designed to withstand extreme heat and cold. This wiring kit is ideal for Renogy Off-Grid Kits ranging from 100W to 400W.

Renogy offers a wide range of lengths, as well as two different gauge sizes to choose from. The different sizes allow for customization based on a customer's unique needs. The Renogy 10ft 10AWG Adaptor Kit allows for 10 feet of length between the solar panel and charge controller.

If you have any questions regarding this product, please submit a case!

Key Features

Hard plastic connectors at each end.
Female and male connectors for an unbreakable connection.
Weatherproof, insullated wiring.
Exposed ends for connection to the solar charge controller.
Essential for off-grid solar power system setup.
Black sunlight resistant cable.
Extends and locks built-in cables.

Package Includes

Renogy Solar Adaptor Kit 1 x

Renogy 10ft 10AWG Adaptor Kit - Connecting Solar Panels to Charge Controllers (A Pair)
Length: 10ft	AWG: 10
Rating Voltage: 600/1000V	Temperature: -40°F to +185°F
Normal Cross Sectional Area of the Conductor (mm2): 6.0	Diameter of Wires in Conductor (mm): 3.02±0.08
Min. Wall Thickness of Insulation (mm): 0.85	Min. Wall Thickness of Sheath (mm): 1.08
Number of Wires in Conductor: 84	IP 65 Protection

Renogy 10ft 12AWG Adaptor Kit - Connecting Solar Panels to Charge Controllers (A Pair)
Length: 10ft	AWG: 12
Rating Voltage: 600/1000V	Temperature: -40°F to +185°F
Normal Cross Sectional Area of the Conductor (mm2): 4.0	Diameter of Wires in Conductor (mm): 3.02±0.08
Min. Wall Thickness of Insulation (mm): 0.78	Min. Wall Thickness of Sheath (mm): 0.97
Number of Wires in Conductor: 56	IP 65 Protection

Renogy 20ft 10AWG Adaptor Kit - Connecting Solar Panels to Charge Controllers (A Pair)
Length: 20ft	AWG: 10
Rating Voltage: 600/1000V	Temperature: -40°F to +185°F
Normal Cross Sectional Area of the Conductor (mm2): 6.0	Diameter of Wires in Conductor (mm): 3.02±0.08
Min. Wall Thickness of Insulation (mm): 0.85	Min. Wall Thickness of Sheath (mm): 1.08
Number of Wires in Conductor: 84	IP 65 Protection

Renogy 20ft 12AWG Adaptor Kit - Connecting Solar Panels to Charge Controllers (A Pair)
Length: 20ft	AWG: 12
Rating Voltage: 600/1000V	Temperature: -40°F to +185°F
Normal Cross Sectional Area of the Conductor (mm2): 4.0	Diameter of Wires in Conductor (mm): 3.02±0.08
Min. Wall Thickness of Insulation (mm): 0.78	Min. Wall Thickness of Sheath (mm): 0.97
Number of Wires in Conductor: 56	IP 65 Protection

Renogy 30ft 10AWG Adaptor Kit - Connecting Solar Panels to Charge Controllers (A Pair)
Length: 30ft	AWG: 10
Rating Voltage: 600/1000V	Temperature: -40°F to +185°F
Normal Cross Sectional Area of the Conductor (mm2): 6.0	Diameter of Wires in Conductor (mm): 3.02±0.08
Min. Wall Thickness of Insulation (mm): 0.85	Min. Wall Thickness of Sheath (mm): 1.08
Number of Wires in Conductor: 84	IP 65 Protection

Renogy 30ft 12AWG Adaptor Kit - Connecting Solar Panels to Charge Controllers (A Pair)
Length: 30ft	AWG: 12
Rating Voltage: 600/1000V	Temperature: -40°F to +185°F
Normal Cross Sectional Area of the Conductor (mm2): 4.0	Diameter of Wires in Conductor (mm): 3.02±0.08
Min. Wall Thickness of Insulation (mm): 0.78	Min. Wall Thickness of Sheath (mm): 0.97
Number of Wires in Conductor: 56	IP 65 Protection

Renogy 40ft 10AWG Adaptor Kit - Connecting Solar Panels to Charge Controllers(A Pair)
Length: 40ft	AWG: 10
Rating Voltage: 600/1000V	Temperature: -40°F to +185°F
Normal Cross Sectional Area of the Conductor (mm2): 6.0	Diameter of Wires in Conductor (mm): 3.02±0.08
Min. Wall Thickness of Insulation (mm): 0.85	Min. Wall Thickness of Sheath (mm): 1.08
Number of Wires in Conductor: 84	IP 65 Protection

Renogy 40ft 12AWG Adaptor Kit - Connecting Solar Panels to Charge Controllers (A Pair)
Length: 40ft	AWG: 12
Rating Voltage: 600/1000V	Temperature: -40°F to +185°F
Normal Cross Sectional Area of the Conductor (mm2): 4.0	Diameter of Wires in Conductor (mm): 3.02±0.08
Min. Wall Thickness of Insulation (mm): 0.78	Min. Wall Thickness of Sheath (mm): 0.97
Number of Wires in Conductor: 56	IP 65 Protection

Renogy 9in 12AWG Adaptor Kit - Connecting Solar Panels to Charge Controllers (A Pair)
Length: 9in	AWG: 12
Rating Voltage: 600/1000V	Temperature: -40°F to +185°F
Normal Cross Sectional Area of the Conductor (mm2): 4.0	Diameter of Wires in Conductor (mm): 3.02±0.08
Min. Wall Thickness of Insulation (mm): 0.78	Min. Wall Thickness of Sheath (mm): 0.97
Number of Wires in Conductor: 56	IP 65 Protection

Warranty Information

Accessories	1-year material warranty

Wiring & Accessories

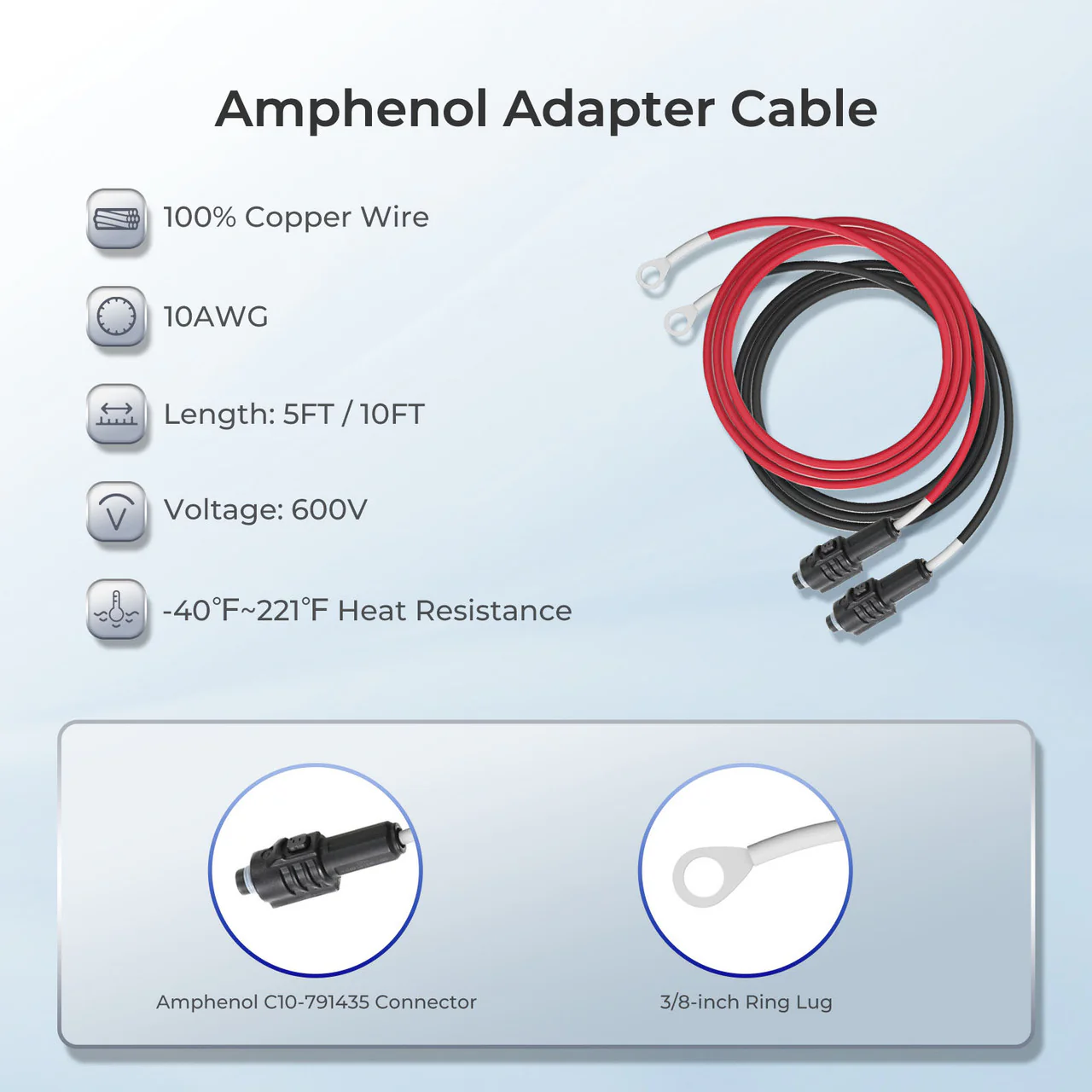

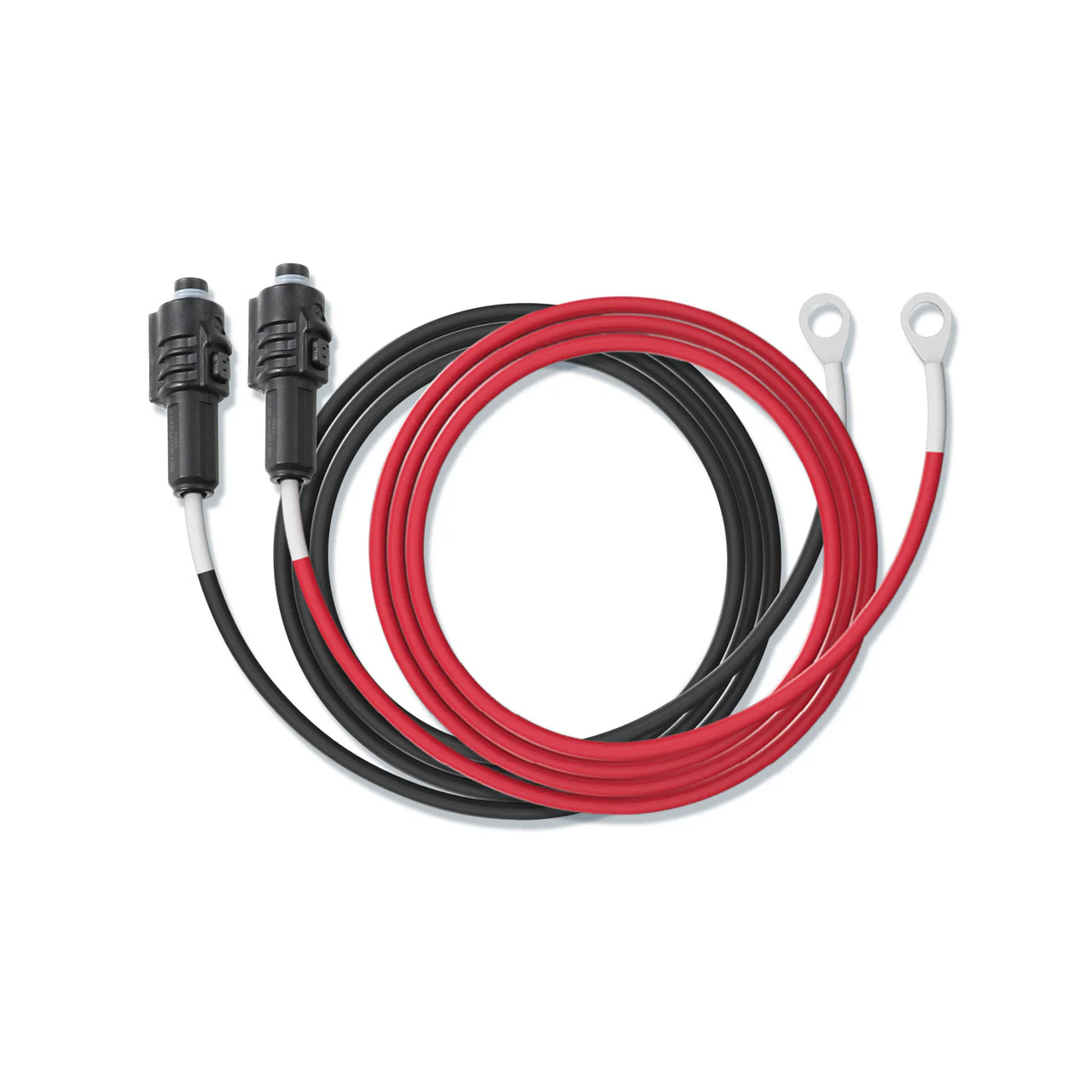

RENOGY Amphenol Adapter Cable( Amphenol - 3/8 in Lugs)
